Untitled Bachelor Project

The idea

This project is a turnbased deckbuilding strategy game, similiar to chess but as a deckbuilder. Players can build a deck from a set of tiles, each of which have their own functionality, such as tiles that move other tiles, or tiles that can attack or defend. The goal is to capture the enemy crown by colliding an attack tile with it. Players are able to see each others hands as to plan out their moves ahead. Tiles also break after using them too often or acquiring too much damage on a tile. The project is made with Unity.

The features

Controls

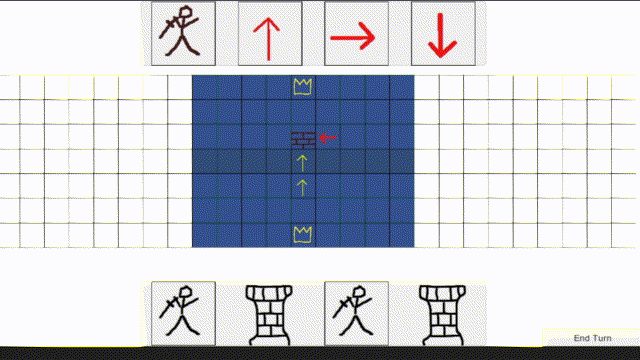

The game is controlled like a card game, meaning the player draws cards that resemble tiles and drag and drop them onto the playing field. Move-tiles can be placed anywhere, whereas defensive and offensive tiles can only be placed in a specific "placement zone". To save on resources, every time a tile is destroyed, it moves into the graveyard. Once all cards have been drawn, the graveyard is shuffled into the deck again. The graveyard serves as an object pool, meaning that rather than creating new instances, the old objects are reactivated to save on resources and performance.

    //In CardObject class
    [SerializeField]
    private GameObject prefab
    [SerializeField]
    private Transform playerHand;

    private int durability = 2;

    public void Draw(CardObject obj) {
      Card drawnCard = Instantiate(Resources.Load<GameObject>("Prefabs/UI/Card"), Vector2.zero);
      drawnCard.transform.SetParent(playerHand);
      drawnCard.Sprite = obj.Sprite;
    }

    public void PlayCard(Vector2 pos) {
      GameObject cardObj = Instantiate(prefab, pos);
    }

    public void DecrementDurability() {
      durability--;
      if(durability <= 0) {
        Kill(this);
      }
    }

    public void Kill(CardObject obj) {
      Graveyard.DeadCards.Add(obj);
      obj.gameObject.SetActive(false);
    }

    public void Reincarnate(CardObject obj, Vector2 pos) {
      obj.transform.position = pos;
      obj.durability = 2;
      obj.SetActive(true);
    }

    //In CardDeck class
    public void DrawFromDeck() {
      if(deck.Count > 0 && handSize < 4) {
        CardObject drawnCard = deck.Dequeue();
        drawnCard.Draw(drawnCard);
        handSize++;
      } else if (deck.Count == 0 && Graveyard.DeadCards.Count > 0) {
        Shuffle(Graveyard.DeadCards);
        DrawFromDeck();
      }
    }
    private void Shuffle(List<CardObject> usedCards) {
      Random shuffle = new Random();

      var shuffledDeck = usedCards.OrderBy(item => shuffle.Next());
      Graveyard.DeadCards.Clear();

      foreach(CardObject card in shuffledDeck) {
        deck.Enqueue(card);
      }
    }


Finite State Machine

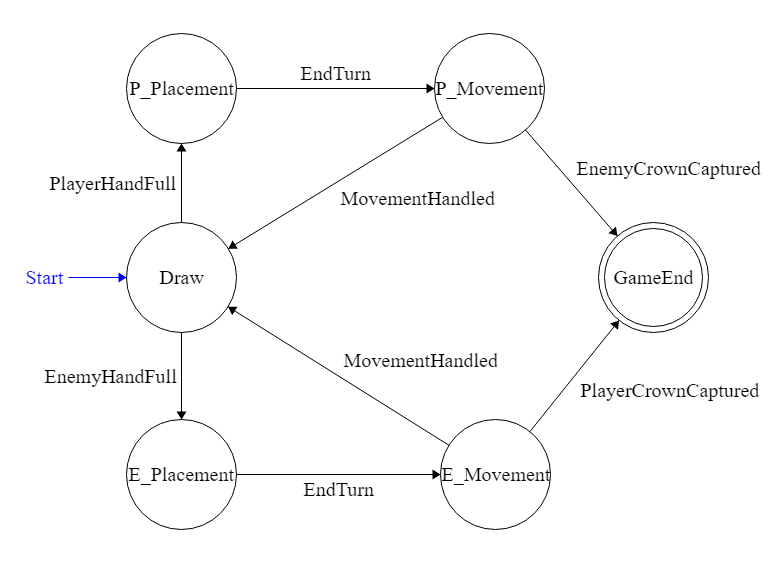

For the implementation of the turnbased logic, I made a simple finite state machine with 6 states, Draw, PlayerPlacement, PlayerMovement, EnemyPlacement, EnemyMovement and GameEnd. Each state has it's own class implementing the IState interface. Here is the implementation of this state machine:


    void Awake() {
      //Collection of all states
      var playerPlacement = new PlayerPlacementState(playerDeck);
      var playerMovement = new PlayerMovementState();
      var enemyPlacement = new EnemyPlacementState(enemyDeck);
      var enemyMovement = new EnemyMovementState();
      var draw = new DrawState(playerDeck, enemyDeck);
      var gameEnd = new GameEndState();

      //Transitions for each states added via AddTransition/At-function - first state is from, second state is to, third is condition
      At(playerPlacement, playerMovement, EndTurn());
      At(playerMovement, draw, MovementHandled());
      At(draw, enemyPlacement, EnemyHandIsFull());
      At(enemyPlacement, enemyMovement, EndTurn());
      At(enemyMovement, draw MovementHandled());
      At(draw, playerPlacement, PlayerHandIsFull());
      At(playerMovement, endGame, EnemyCrownCaptured());
      At(enemyMovement, endGame, PlayerCrownCaptured());

      //Conditions for state change
      Func<bool> EndTurn() => () => endTurn == true;
      Func<bool> MovementHandled() => () => MovementManager.NoViableMoves == true;
      Func<bool> PlayerHandIsFull() => () => playerDeck.handSize >= 4;
      Func<bool> EnemyHandIsFull() => () => enemyDeck.handSize >= 4;
      Func<bool> PlayerCrownCaptured() => () => playerCrown.IsAlive == false;
      Func<bool> EnemyCrownCaptured() => () => enemyCrown.IsAlive == false;
    }

    public void EndTurnButtonOnClick() {
      endTurn = true;
    }

    public void AddTransition(IState to, Func<bool> predicate) {
      transitions.Add(new Transition(to, predicate));
    }


Postmortem

Being able to be the sole programmer for a larger project gives me a great deal of freedom to work on my own accords. Lena's directions and design decisions are of course the driving factor for development, but the amount of flexibility allowed me to use this project as a learning opportunity. I used this to deepen my understanding of the principles of test driven development, design- and programming patterns and the SOLID-principles. Of course, the project is still in the prototype stage. So it is expected that the learning process will continue further during development of the game.
